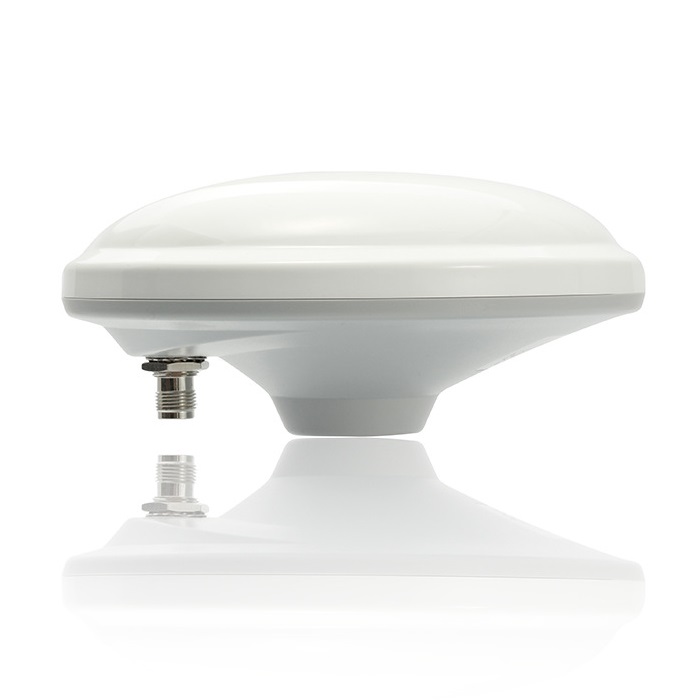

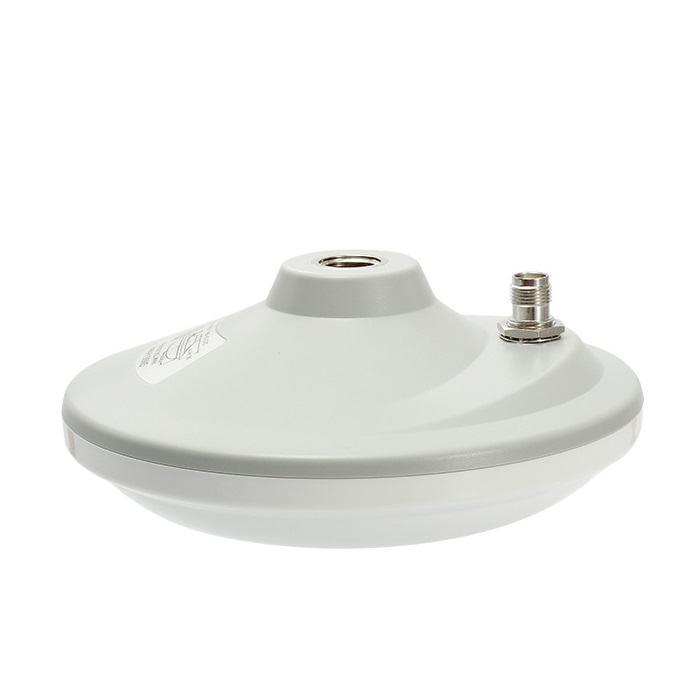

GNSS Antenna High Gain with BDS GPS GLONASS GALILEO for Surveying Equipment Long Range Get Sample A-SDSP-YYTX-STA101-5
Share
Product Description
Key Parameters
| Frequency | GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, GALILEO E1/E2/E5a/E5b |
| Impedance | 50Ω |
| VSWR | ≤2 |
| Gain | 5.5dBi |
| Phase center error | ±2mm |
| Working voltage | DC 3.3V~12V |
| Working current | ≤45mA |
| Differential transmission delay | ≤5ns |
| Antenna size | Φ173×63mm |

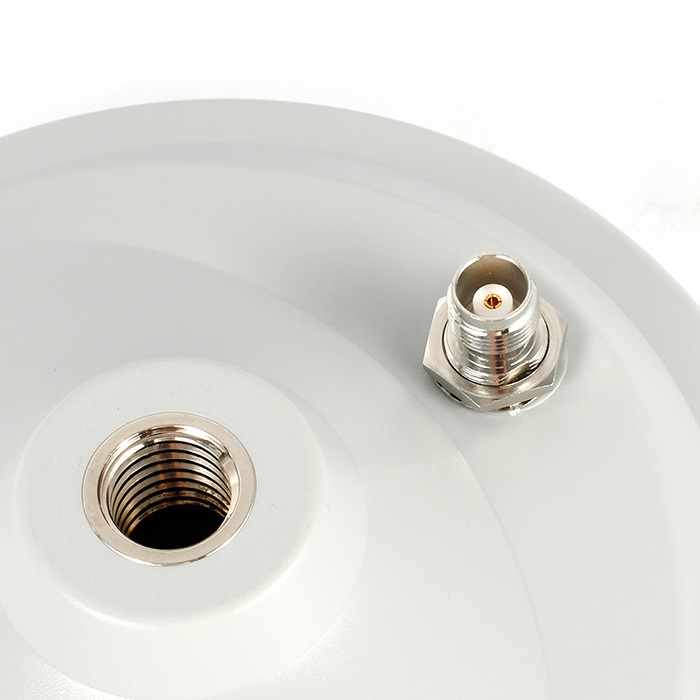

| Connector type | TNC female |
| Weight | ≤450g |
| Operating temperature | -40℃ ~ +85℃ |
| Storage temperature | -55℃ ~ +85℃ |
