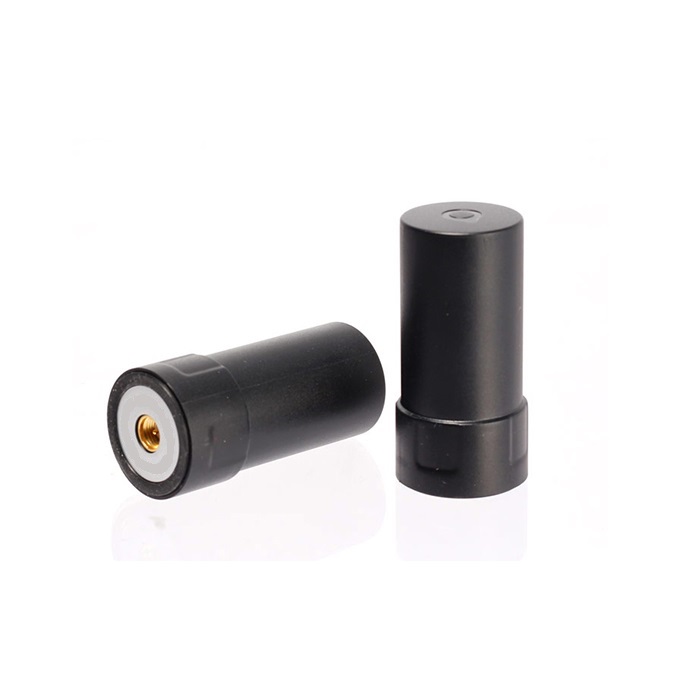

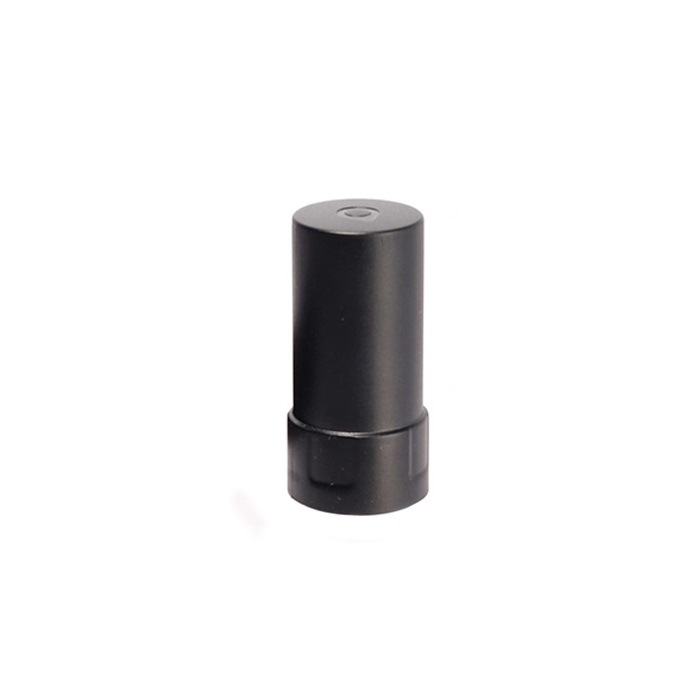

GNSS Antenna High Gain with BDS GPS GLONASS Small Size for UAV Drone and Handheld devices A-SDSP-YYTX-STA3001-4
Share
Product Description
Key Parameters
| Frequency | GPS L1/L2, BDS B1/B2/B3, GLONASS L1/L2 |
| Impedance | 50Ω |
| Antenna axial ratio | ≤3dB |
| VSWR | ≤2.0 |
| Gain | 2dBi |
| Phase center error | ±2mm |
| Working voltage | DC 3.3V ~ 12V |
| Working current | ≤55mA |
| Differential transmission delay | ≤5ns |

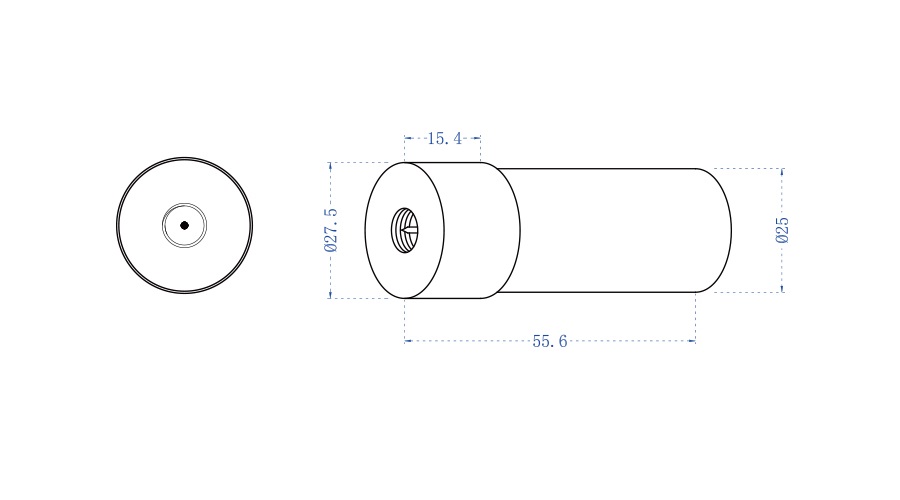

| Antenna size | Φ27.5*59mm |
| Connector type | SMA Male |
| Weight | ≤25g |
| Working temperature | -40℃ ~ +85℃ |
| Storage temperature | -55℃ ~ +85℃ |
