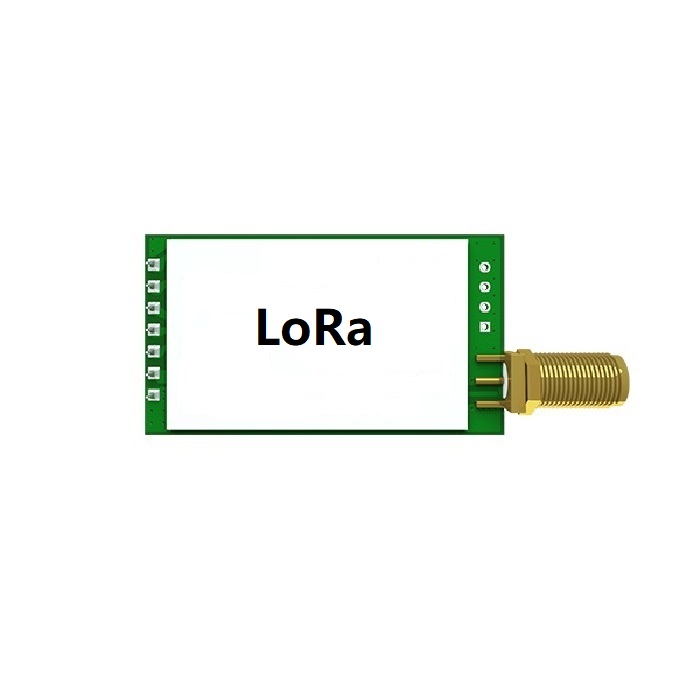

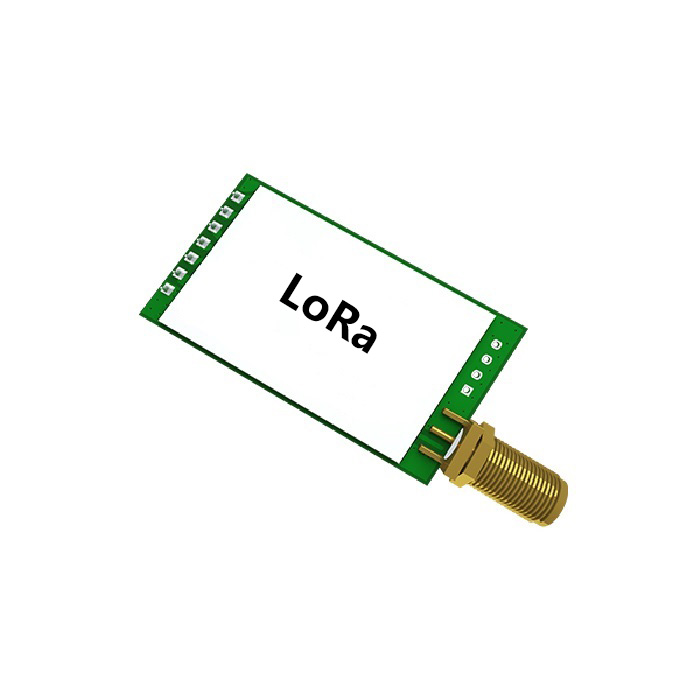

Compact and Lightweight Long-Range Wireless LoRa Module SEMTECH SX1262 SX1268 Chip 850-930MHz & 410-493MHz IoT Remote Communication LR-EBT-2293D-3 LR-EBT-2243D-4
Share
Product Description
Key Parameters
| Core Chip | SEMTECH SX1262 / SEMTECH SX1268 |
| Frequency Band | 850 ~ 930MHz / 410 ~ 493MHz |
| Transmitting Power | 30dBm |
| Receiving Sensitivity | -147dBm |
| Air Speed | 2.4K ~ 62.5Kbps |
| Transmitting Distance | Max 10km (Clear and open environment, antenna gain 5dBi, antenna height 2.5m, air speed 2.4Kbps) |
| Interface | UART (TTL) |
| Baudrate | 1200 ~ 115200 (default is 9600) |
| Power Supply | 3.3V ~ 5.5V (Typ: 5.0V, ≥5.0V can ensure the output power) |
| Communication Level | 3.3V |
| Transmitting Current | 650mA (instantaneous current) |
| Receiving Current | 16mA |
| Sleep Current | 2μA |
| Antenna | SMA-K |

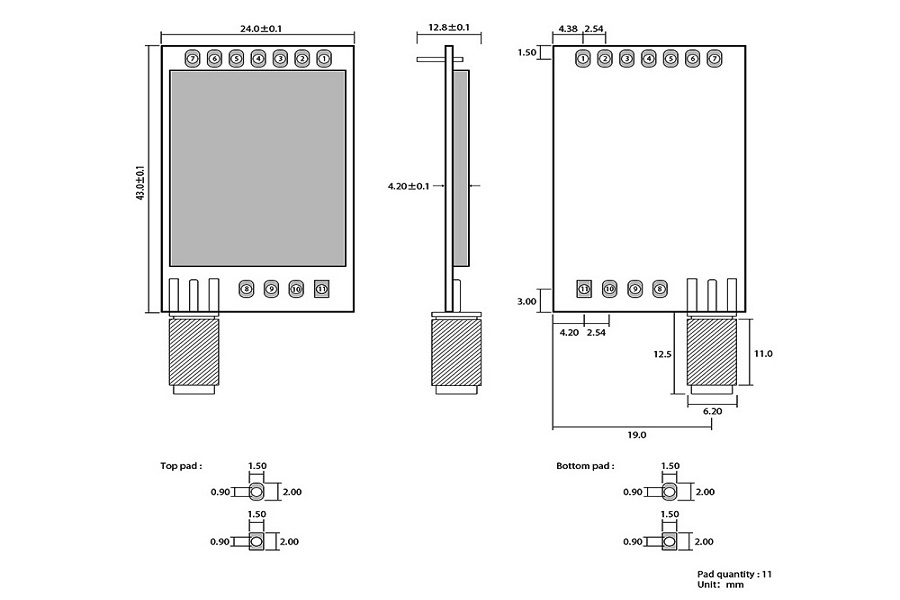

| Dimensions | 24 * 43mm |
| Weight | 11g±0.2g |
| Working temperature | -40℃ ~ 85℃ |
| Storage temperature | -40℃ ~ 125℃ |
